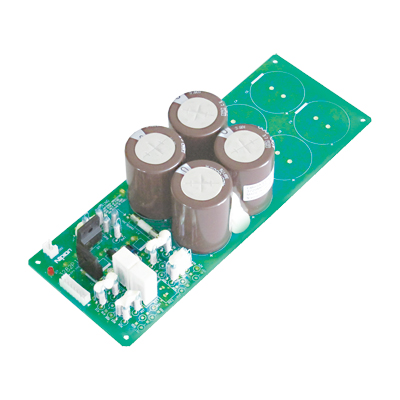

CB01A-EC400/322F

Capacitor backup unit

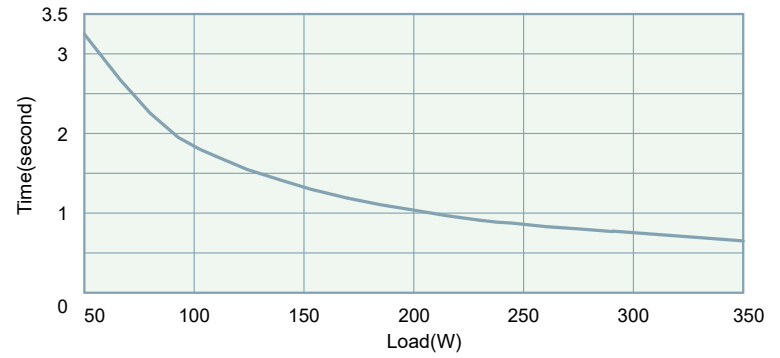

  • The backup time to 0.5 sec (at 350W load) if required.
  • Advantages of using a capacitor pack Maintenance-free (no regular replacement required)
  • Compatible with low-temperature and high-temperature (Achieves backup for about 0.5 seconds during a power failure (typ. value at 350W output) Advantages of using a capacitor pack
  • Maintenance-free (no regular replacement required)
  • Compatible with low-temperature and high-temperature environments (0 deg.C to 60 deg.C)
  • 30 Quick charge for seconds (corresponds to frequent power outages)
  • Compatible power supply - OZP-350-**-* SEB
​This product is dangerous because it has high voltage parts such as the connection part with the power supply. When using, be sure to carefully check the items in the product specifications before using the product correctly.

  • Battery Data

Specifications:
Compatible case size Other
Outline drawing 83Wx53Hx222D
Weight 0.4 kg typ
Applied battery
Nominal battery power voltage
Rating capacity 420V 3200uF
Built in fuse rating
Operating temperature 0 to 60 deg.C
Storage temperature/humidity -20 to 70 deg.C /10 to 95%RH
Warranty Three years after delivery.
