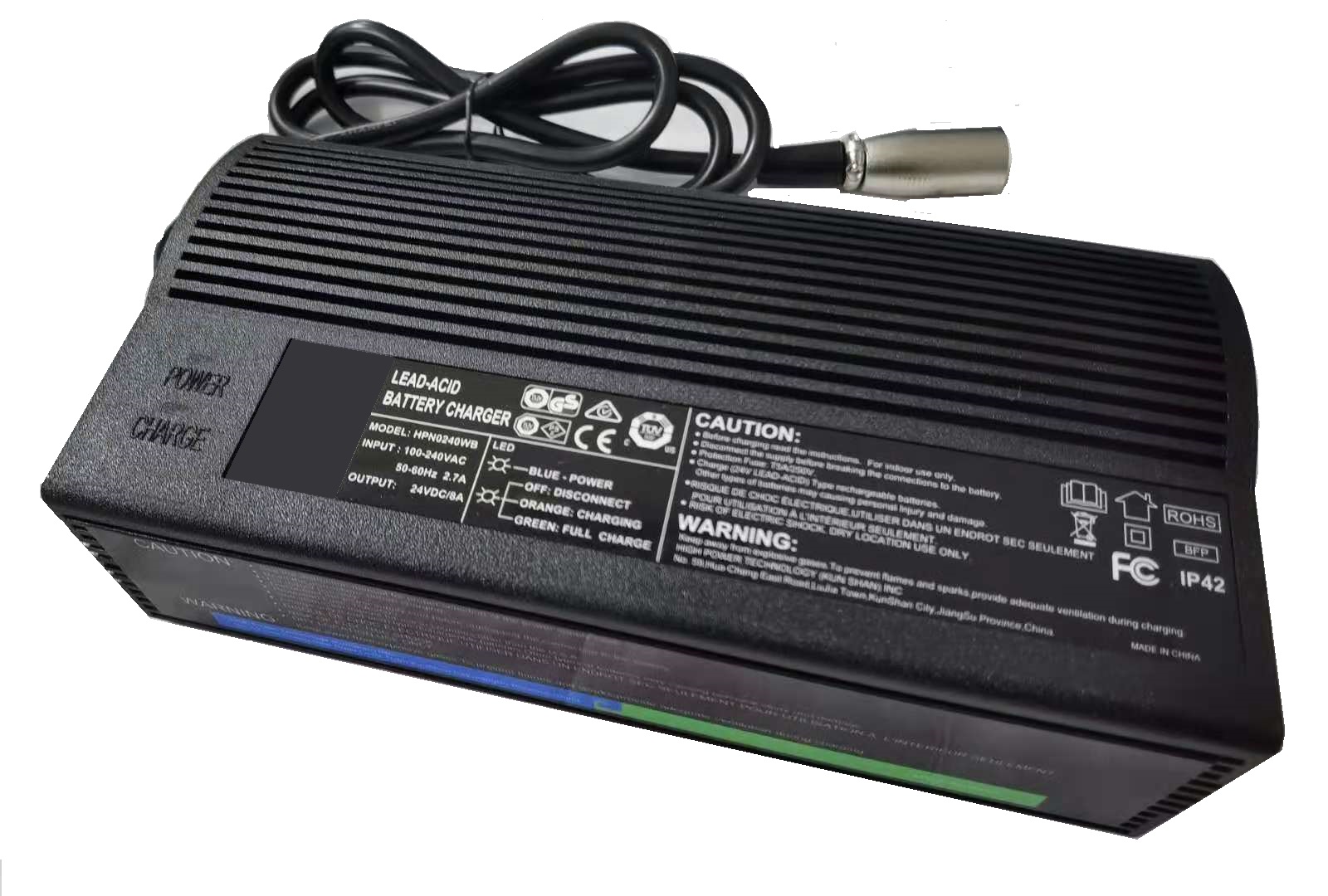

| 24V/8A Wheel Chairs Battery Charger Specification |
|
| Project | Parameter values |
| Input AC voltage | AC 100~240V 50-60HZ |
| No-load voltage | 29.4V ±0.3V |
| Fast charging current | 8A±0.5A |
| Pre-charge current | 1.5A±0.5A |
| Charging mode | CC+CV |
| Led indicator | Power On：Blue Charging：Orange Full Charge：Green Error：Orange Flash |
| Short circuit protection | Y |
| Overvoltage protection | Y |
| Overcurrent protection | Y |
| Under voltage protection | Stop charging |
| Operating temperature | 0～40℃ |
| Storage Temperature | -20～70℃ |
| Operating humidity | 20%～85% |
| Dimentions | L212mm*W105mm*H63mm |
| Weight | 1300g |
| Used below the altitude | 2000m |
