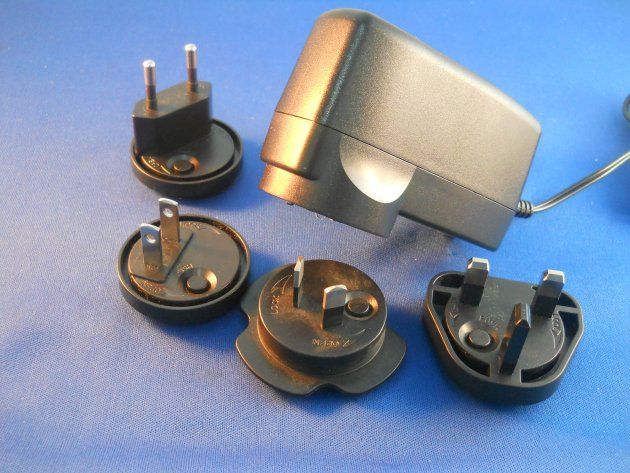

PA1060 ITE 62368 Interchangeable Power Adapter
- Low Ripple/Noise
- Over-Voltage Protection
- Over-Current Protection
- Short-circuit Protection
- LVD authentication
- Limited Power Sources(LPS)
- DoE VI and CoC Tier 2 VI Efficiency Regulations Compliance
- FCC Part15 CLASS B, Compliance Cispr 22 CLASS B,VCCI CLASS B
- MTBF Above 50000 HRS At 25℃
- 100%Burn-in under (45℃)
- 100%Hi-pot & ATE(Chroma)Tested
Model No |
PA1060-XYZ |
|||||
Part No |
PA1060-120YZ~ PA1060-149YZ |
PA1060-150YZ~ PA1060-240YZ |
PA1060-241YZ~ PA1060-360YZ |
PA1060-361YZ~ PA1060-570YZ |
||
Item |
||||||
Output Voltage |
12.0-14.9V |
15.0-24.0V |
24.1-36.0V |
36.1-57.0V |
||
Output Current(Max ) |
0-5.0A |
0-4.33A |
0-2.69A |
0-1.80A |
||
Output Power |
60W |
65W |
65W |
65W |
||
Input Votage |
AC90~264V |
Input Frequency |
47~63Hz |
|||
Input Current |
0.6A Maximum |
Inrush Current |
60A Maximum |
|||
Line Regulation |
1% Maximum |
Ripple&Noise |
1% Maximum |
|||
Load Regulation |
5% Maximum |
Efficiency |
DOE VI & COC Tr2 |
|||
EMC(EMI/EMS) |
CE,FCC,VCCI,C-Tick,KCC |
|||||
Safety Standard |
CB, GS,LVD,BSMI,KC,RCM,SAA,BIS,CCC,PSE,UL,IRAM |
|||||
Operating Temperature |
0~40℃ |
Over-Voltage Protection |
Auto Recovery |
|||
Storage Temperature |
-20~85℃ |
Short-circuit Protection |
Auto Recovery |
