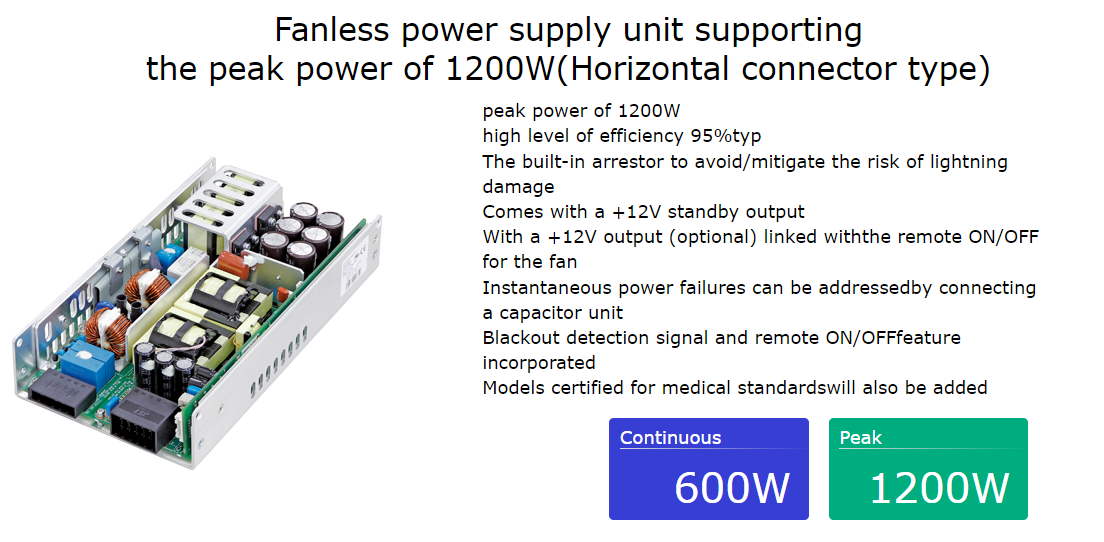

UZP-600/1200P Single Output AC-DC Power Supply
Production information
Output specification
 |
Standard, specifications: For standard and specifications, click each item.
| Compatible case size | Other | |
| Outline drawing | 127Wx44Hx228.6D | |
| Weight | 1.3 kg typ | |
| Input Voltage | AC | 85-264V |
| Efficiency | AC | 93% typ(AC115V)/95% typ(AC200V) |
| Power factor | 98% typ(AC115V)/96% typ(AC200V) | |
| Input changeover system | Worldwide | |
| Safety | UL62368 PSE(Ordinance item 2) Compliant CE marking |
|
| High frequency current regulation | IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant | |
| EMI standard (Input feedback noise) |
VCCI/FCC/CISPR32/EN55032 Class B compliant | |
| CE marking | Low voltage and EMI directive and RoHS2.0 | |
| EMS immunity | Electrostatic discharge: EN61000-4-2 compliant Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips and fluctuation: EN61000-4-11 compliant |
|
| MTBF |  |
|
| Operating temperature | -20 - 70deg.C(Air-cooling without blower)/-20 - 70deg.C(Forced Air Cooling) | |
| Leakage current | 0.06mA typ(AC100V),0.12mA typ(AC200V) | |
| Cooling systems | Air-cooling without blower | |
| Insulation | |
|
| Output ground connection | Capacitor ground | |
| Warranty | Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us. |
|
