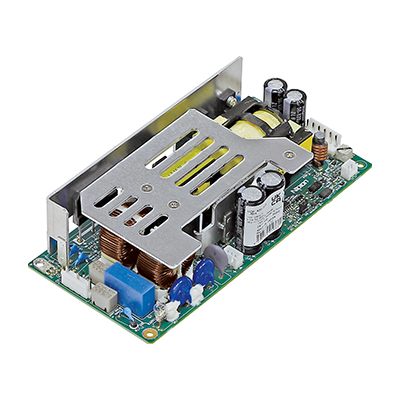

Large capacity and miniaturization Ultra-high efficiency board type +12V output switching power supply |
|||||
 |
Backup for blackout and instantaneous power failure is available The built-in arrestor to avoid/mitigate the risk of lightning damage Equipped with a variable resistor to adjust output voltage It is not necessary to provide a noise filter on the outside. Low noise and low leakage current is also realized. |
||||
| Continuous
320.4W
|
Peak
504W
|
||||
 |
|||||

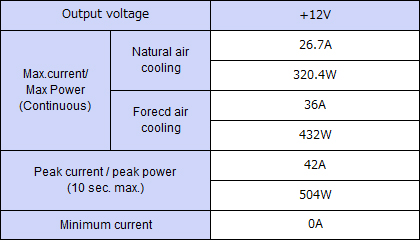

Output specification
Standard, specifications: For standard and specifications, click each item.
| Compatible case size | Other | |
| Outline drawing | 84Wx45Hx180D | |
| Weight | 0.55 kg typ | |
| Input Voltage | AC | 85-264V |
| Efficiency | AC | 90% typ(AC100V)/92% typ(AC200V) |
| Power factor | 99% typ(AC100V)/92% typ(AC200V) | |
| Input changeover system | Worldwide | |
| Safety | UL62368-1, CSA62368-1 (c-UL) certified, CE Marking, UKCA Marking EN62477-1, OVC III , PSE (ordinance clause 2) compliant |
|
| High frequency current regulation | IEC61000-3-2 (edition 2.1) classA, EN61000-3-2 (A14) classA compliant | |
| EMI standard (Input feedback noise) |
VCCI-B, FCC-B, CISPR32-B, EN55032-B compliant | |
| CE marking | Low Voltage Directive, EMC Directive,RoHS2.0 | |
| EMS immunity | Electrostatic discharge: IEC61000-4-2 compliant Radiate, radio frequency electromagnetic fields: IEC61000-4-3 compliant Fast transient burst: IEC61000-4-4 compliant Lightning surge: IEC61000-4-5 compliant Conductive radio frequency electromagnetic fields: IEC61000-4-6 compliant Power source frequency magnetic immunity: IEC61000-4-8 compliant Voltage dips and fluctuation: IEC61000-4-11 compliant |
|
| MTBF |  |
|
| Operating temperature | -10-70deg.C (at convection cooling), -10-70deg.C (at forced air cooling) | |
| Leakage current | 0.06mA typ (100VAC), 0.12mA typ (200VAC) | |
| Cooling systems | Air-cooling without blower | |
| Insulation | 1.5kVAC/1minute between input and output/RC,1.5kVAC/1minnute between input and FG ,500VAC/1minute between each output /RC/FG | |
| Output ground connection | Capacitor grounding | |
| Warranty | Three years after delivery: If any defects belong to us, the defective unit shall be repaired or replaced at our cost. |
|
