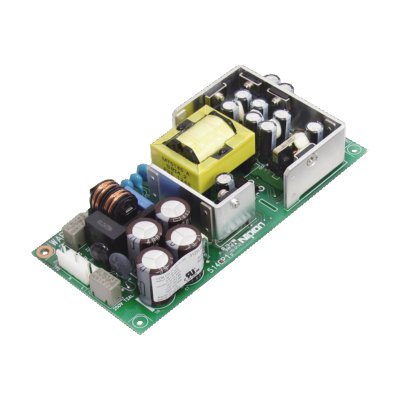

30W Triple output power supply(3.3V+-12V type) |
||||
 |
- High efficiency with synchronous rectification circuit - Low standby power consumption and low noise - Medical standard IEC60601-1 3rd compliant |
|||
| Continuous
29.1W
|
Peak
29.1W
|
|||

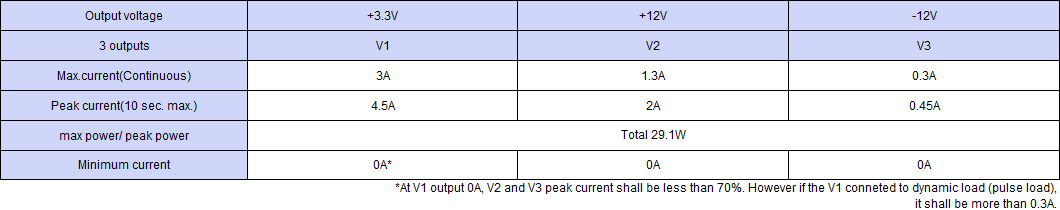

Output specification
Standard, specifications: For standard and specifications, click each item.
| Compatible case size | Other | |
| Outline drawing | 65Wx31.5Hx140D | |
| Weight | 0.2 kg typ | |
| Input Voltage | AC | 85-264V |
| Efficiency | AC | 76% typ(AC100V)/78% typ(AC200V) |
| Power factor |  |
|
| Input changeover system | Worldwide | |
| Safety | UL/CSA60950(UL/cUL) | |
| High frequency current regulation | |
|
| EMI standard (Input feedback noise) |
VCCI,FCC part15,CISPR 22,EN55022 Class B compliant | |
| CE marking | |
|
| EMS immunity | |
|
| MTBF | |
|
| Operating temperature | -10 to 65 deg.C | |
| Leakage current | 0.2mA typ (AC100V)/0.5mA typ(AC240V) | |
| Cooling systems | Air-cooling without blower | |
| Insulation | |
|
| Output ground connection | Capacitor ground | |
| Warranty | Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us. | |
